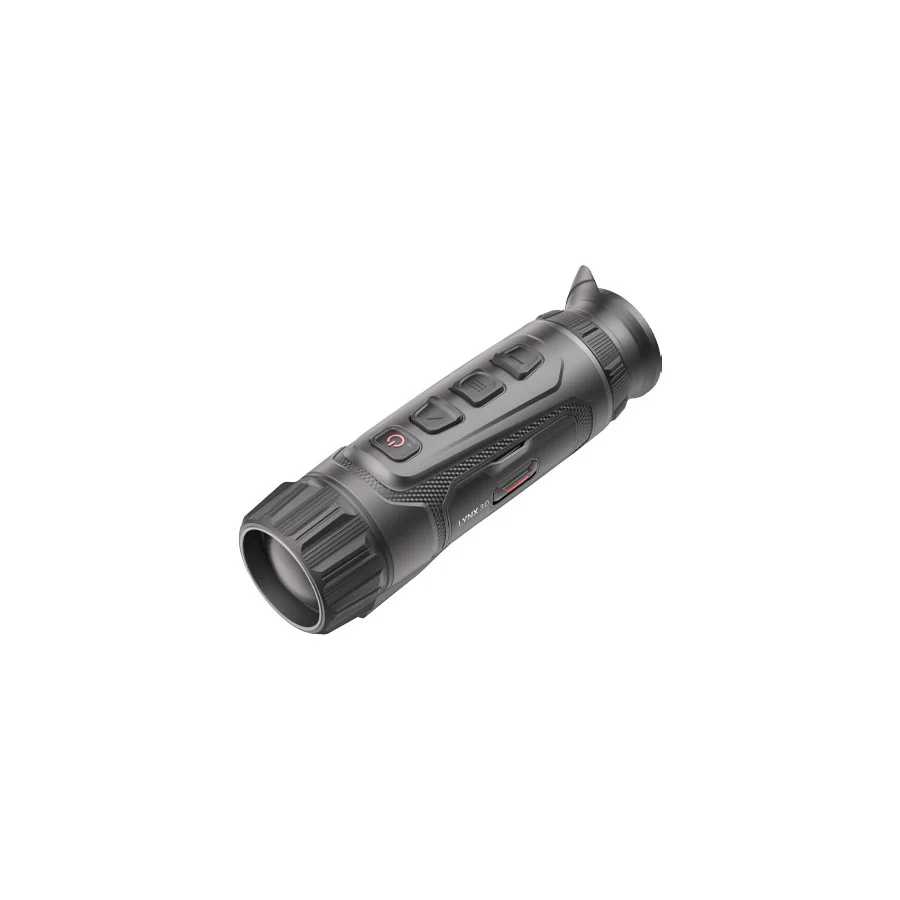

HIKMICRO Lynx LQ35L 3.0 Thermal Monocular

With a base magnification of 1.9×, a 640 × 512 detector, 35mm F1.0 lens and 1000m laser rangefinder, the Lynx LQ35L 3.0 delivers outstanding performance for professional hunters and mid- to long-range applications. Its 7.5° field of view (13.1m at 100m) and detection range of up to 1800m provide exceptional detail across wide, open terrain, making it a premium choice with proven shutterless technology.

Features of HikMicro Lynx LQ35L 3.0 Thermal Monocular

• Up to 640×512 Thermal resolution
• High-sensitivity thermal module with NETD ＜ 15 mK (@25°C, F# = 1.0).
• 35 mm, F1.0 lens with thermal detection range up to 1800m
• HIKMICRO Shutterless Imaging System (HSIS)
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
• Up to 1000m Laser Rangefinder


Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 640x512
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 15 mK (@25°C),F#=1.0
• Lens (Focal Length): 35mm, f1.0
• Focus Mode: Focus Ring
• Detection Range: 1800m
• Min. Focusing Distance: 3.5m
• Magnification: 1.9x - 15.2x (8x)
• Field of View(H × V), Degrees / m @100m: 12.5°×7.5°/21.9m×13.2m

Image Display

• Display: 1920x1080, 0.49 inch, AMOLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6mm
• Eye Relief: 20mm
• Diopter (Range): -5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 3.0: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Built-in Memory: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: 2.4 GHz/5 GHz Wi-Fi Waveband
• Hot Track: Yes
• Distance Measurement: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion 18650 Battery
• Battery Operating Time:
  • 5-hour continuous running with hotspot on (@25°C)

  • 4.5-hour continuous running with hotspot on (@-20°C)
• Type-C Power Supply: 5V DC, 2A
Supports External Power Supply, Support Direct Charging

General

• Protection Level: IP67
• Dimension: 173.3 x 66.8 x 49.3 mm
• Weight: 410.7g with battery
• Working Temperature:
  • From -30°C to 45°C (-22°F to 113°F)
  • Humidity: 90% or Less

Laser Rangefinder

• Safety Class for Laser : Class 1
• Wavelength : 905nm
• Max.Measuring Range : 1200m
• Measurement Accuracy : ±1m
• Min.Measuring Range: 5m
